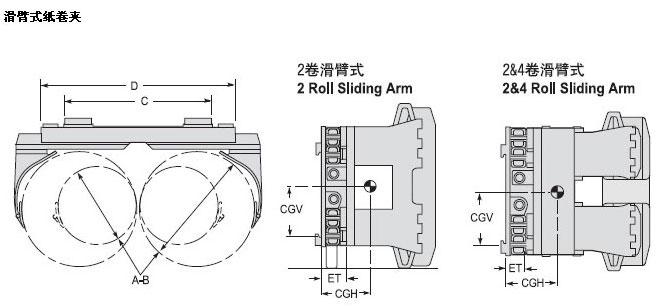

屬具 紙箱夾 滑臂式紙卷夾
發(fā)布時(shí)間：2019/11/25
| Capacity | Catalog Order NO | Mounting Class | Roll Range | Pad Size | Minimum Truck Carriage Width | Frame Width | Vertical Center of Gravity | Weight | Effective | Horizontal Center of Gravity |
| 承載能力(KG) | 型號(hào) | 安裝等級(jí) | 紙卷直徑 | 夾板尺寸HxW(mm) |
叉車貨叉架寬度最小值 (mm) |
框架寬度D(mm) | 垂直重心CGV(mm) | 自重(kg) |
失載距 T(mm) |
水平重心 CGH(mm) |
| 2270 | 50D-RTR-38/50 | Ⅲ | 2*(965-1207) | 255*965 | 1060 | 1525 | 255 | 804 | 185 | 223 |
| 2725 | 60D-RTR-31/42 | Ⅲ | 2*(965-1065) | 255*965 | 980 | 1220 | 255 | 704 | 185 | 198 |
| 3180 | 70D-RSM-36/51 | Ⅲ/Ⅳ | 4*(915-1295) | 305*1065 | 950 | 1625 | 305 | 1226 | 190 | 262 |
| 3630 | 80D-RSM-36/51 | Ⅲ/Ⅳ | 4*(915-1295) | 305*1065 | 950 | 1625 | 320 | 1303 | 190 | 282 |
